경부하에서 고부하까지 폭넓은 구간에서 고정밀도 액체 온도 제어가 가능한 CIL Series

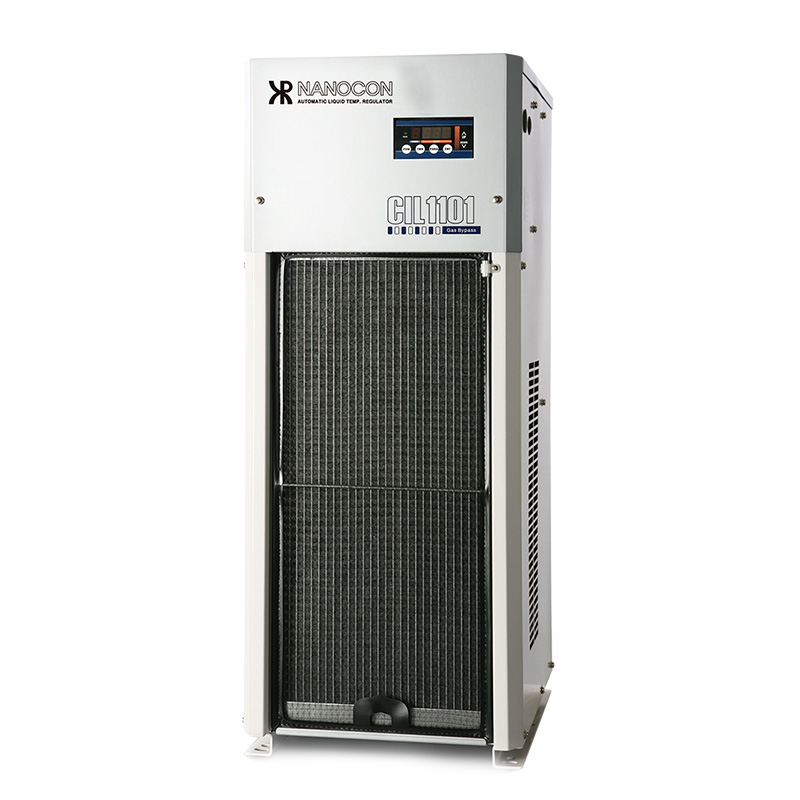

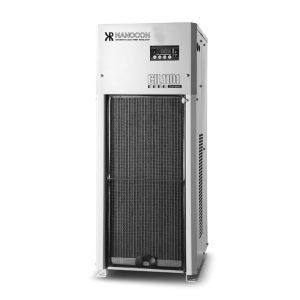

CIL KWANGRIM OIL COOLER
CIL KWANGRIM OIL COOLER



CIL시리즈는 Gas bypass제어 방식을 채택하여 정밀 및 정삭 사공에 광범위하게 적용 할 수 있는 고품질 오일쿨러 입니다 Dual Valve / Gas Bypass PID Control을 채용한 CIL시리즈 A type은 경부하 상태에서 고부하까지 ±0.1’C 정밀 제어가 가능케하였으며, 공작기계의 수명과 정밀 가공 능력 항상에 기여합니다

With gas-by-pass type control, CIL can be used for various cutting purposes including high-precision machining and finishing touches, The CIL A –type with the dual Valve / Gas Bypass PID Control made ±0.1’C of continuous minute control ranging from light to heavy loading in greater machining quality and longer machine life.

We also offer E-type, a CIW type and an economical with water pump for customers.

제 원SpecificationCIL250E-CTCIL301CIL501CIL751CIL1101CIL1501CIL2201CIL3800
정격냉각능력(W) (50/60 Hz)Rated Power Source1,040/1,1701,160/1,3901,520/1,8002,900/3,4803,820/4,5504,830/5,8108,820/10,50013,700/16,500
인가 전원Impressed Power Source3Ø 200V 50 / 60Hz, 220V / 60Hz3Ø 200V 50 / 60Hz, 220V / 60Hz3Ø 200V 50 / 60Hz, 220V / 60Hz3Ø 200V 50 / 60Hz, 220V / 60Hz3Ø 200V 50 / 60Hz, 220V / 60Hz3Ø 200V 50 / 60Hz, 220V / 60Hz3Ø 200V 50 / 60Hz, 220V / 60Hz3Ø 200V 50 / 60Hz, 220V / 60Hz
정격 전원 용량 (kVA)Rated Power Capacity2.22.53.15.45.87.38.49.9
제어 회로Operation CircuitDC 12VDC 24V, 5VDC 24V, 5VDC 24V, 5VDC 24V, 5VDC 24V, 5VDC 24V, 5VDC 24V, 5V
정격 부하 전류 (A)Rated Load Current5.86.581415192226
압축기CompressorRotary TypeRotary TypeRotary TypeRotary TypeRotary TypeRotary TypeScroll TypeScroll Type
응축기CondenserFIN&TUBEALL Aluminum TypeALL Aluminum TypeALL Aluminum TypeALL Aluminum TypeALL Aluminum TypeALL Aluminum TypeFIN&TUBE
증발기EvaporatorPLATE TYPE(Stainless)PLATE TYPE(Stainless)PLATE TYPE(Stainless)PLATE TYPE(Stainless)PLATE TYPE(Stainless)PLATE TYPE(Stainless)PLATE TYPE(Stainless)PLATE TYPE(Stainless)
펌프 모터 형식TypeT-ROTOR GEAR PUMPT-ROTOR GEAR PUMPT-ROTOR GEAR PUMPT-ROTOR GEAR PUMPT-ROTOR GEAR PUMPTROCHOID GEAR PUMPTROCHOID GEAR PUMPTROCHOID GEAR PUMP
펌프 모터토출 유량 (L/min)Flow rate6.7 / 8.1 12/14.412/14.418.0/21.624/28.829.7/36.639/46.858.8/70.2
펌프 모터릴리프 압력 (㎫)Relief valve set0.50.60.60.60.60.50.50.5
펌프 모터모터 정격 출력 (kW)Rated motor output0.20.20.20.40.40.70.71.5
접속배관 IN * OUT (RC, PT)Connecting piping1/2 * 1/21/2 * 1/21/2 * 1/23/4 * 1/23/4 * 3/43/4 * 3/41 * 11 1/4 * 1 1/4
옵션 탱크용량 (Liter)Tank capacity (option)18202020(40)4060120120
무게 (kg, 옵션제외)Weight (without option)5560607080100150170
정격사용 온도범위 실온 (℃)Ambient temperature5 ~ 45 ℃ (Option 0 ~ 50 ℃)5 ~ 45 ℃ (Option 0 ~ 50 ℃)5 ~ 45 ℃ (Option 0 ~ 50 ℃)5 ~ 45 ℃ (Option 0 ~ 50 ℃)5 ~ 45 ℃ (Option 0 ~ 50 ℃)5 ~ 45 ℃ (Option 0 ~ 50 ℃)5 ~ 45 ℃ (Option 0 ~ 50 ℃)5 ~ 45 ℃ (Option 0 ~ 50 ℃)
정격사용 온도범위 유온 (℃)Oil temperature5 ~ 45 ℃ 5 ~ 45 ℃ 5 ~ 45 ℃ 5 ~ 45 ℃ 5 ~ 45 ℃ 5 ~ 45 ℃ 5 ~ 45 ℃ 5 ~ 45 ℃
목표온도 제어정밀도 (℃)Target temperature
control accuracy		± 1.0 ℃E : ± 1.0 ℃
A : ± 0.1 ℃		E : ± 1.0 ℃
A : ± 0.1 ℃		E : ± 1.0 ℃
A : ± 0.1 ℃		E : ± 1.0 ℃
A : ± 0.1 ℃		E : ± 1.0 ℃
A : ± 0.1 ℃		E : ± 1.0 ℃
A : ± 0.1 ℃		E : ± 1.0 ℃
A : ± 0.1 ℃
냉매RefreigerantR410AR410AR410AR410AR410AR407CR407CR407C
